API Cast Steel Gate Valve

Cast Steel Gate Valve, Industrial Api Gate Valves Supplier, Offers API600 & API6D Cast Steel Rising Stem OS&Y Wedge Gate Valve, Cast Carbon Steel and Stainless Steel Valve Size 2" to 36″, Ansi Class 150Lbs to 2500Lbs; Bolted Bonnet And Pressure Seal Bonnet Design for Different Pressure Rating Conditions. Handwheel, Gear Operated and Bare Stem for Electric Actuator Gate Valves Are Available for Choice.

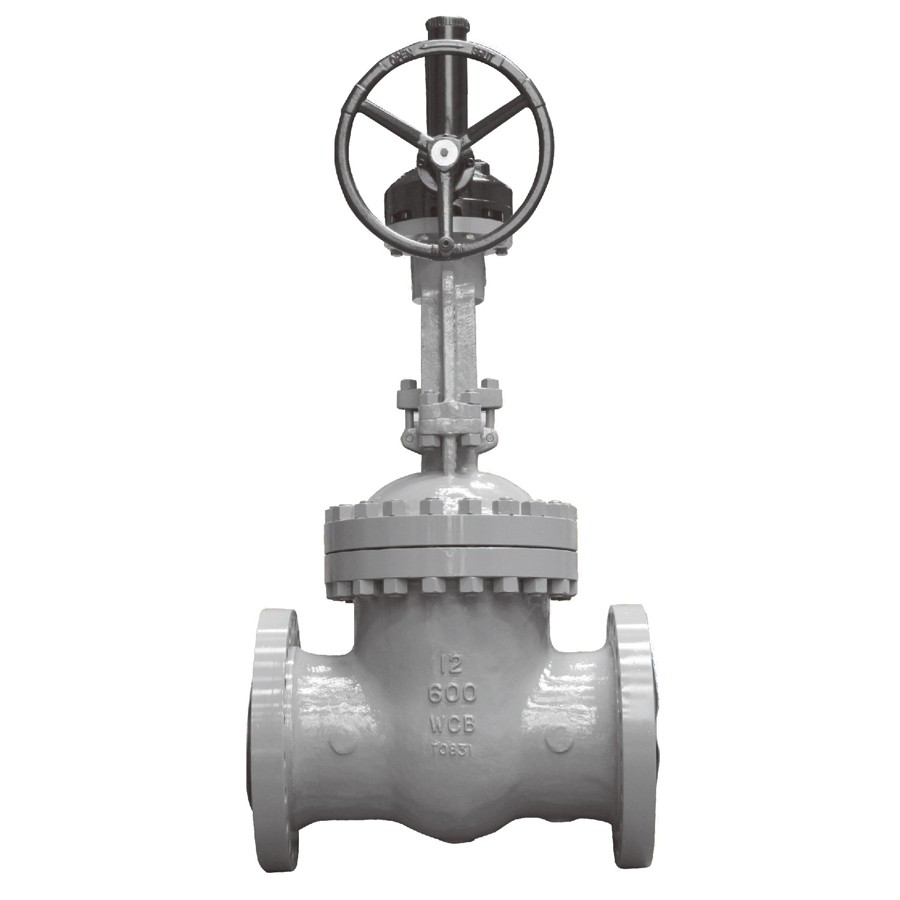

API Cast Steel Gate Valve
1. Design & Manufacture: ANSI B16.34, API 600, API6D
2. Types of Wedge: Flexible Wedge, Solid Wedge
3. Types of Bonnet: Bolted Bonnet, Pressure Seal Bonnet
4. Types of Stem: Rising Stem (OS&Y), Non-Rising Stem
5. Types of End Connections: Flanged, Butt Weld
6. Types of Flange Face: Raised Face, Flat Face
7. Types of Material: Carbon Steel, Alloy Steel, Stainless Steel (WCB, LCB, WC6, WC9, C5, C12, CF8, CF8M, CF8C, CF3, CF3M, 4A, 5A)
8. Type of Trim: 410, 304, 316, Hard Faced, Full Hard Faced, Suit Different Service Conditions
9. Type of Drive: Manual, Electric Actuator, Bare Stem
10. Valve Size: 2inch to 36inch
11. Valve Pressure: Ansi Class 150Lb, 300Lb, 600Lb, 900Lb, 1500Lb
12. Special Design: NACE MR 0175, Bypass Valve

Cast Steel Gate Valve Main Parts

Part Name	Material
	A216- WCB	A216- WCB	A216- WCB	A216- WCB	A216- WCB	A351- CF8(M)	A351- CF3(M)
	Trim 1#	Trim 8#	Trim 5#	Trim 10#	Trim 12#	A351- CF8(M)	A351- CF3(M)
Body	A216- WCB	A216- WCB	A216- WCB	A216- WCB	A216- WCB	A351- CF8(M)	A351- CF3(M)
Bonnet	A216- WCB	A216- WCB	A216- WCB	A216- WCB	A216- WCB	A351- CF8(M)	A351- CF3(M)
Disc	WCB+ 13Cr	WCB+ 13Cr	WCB+ STL	WCB+ 316	WCB+ 316	A351- CF8(M)	A351- CF3(M)
Seat	13Cr	Stellite	Stellite	316SS	Stellite	Integral	Integral
Stem	A182- F6a	A182- F6a	A182- F6a	A182- F316	A182- F316	F304 /316	F304L /316L
Bolts/Nuts	B7/2H	B7/2H	B7/2H	B7/2H	B7/2H	B8(M) /8(M)	B8(M) /8(M)
