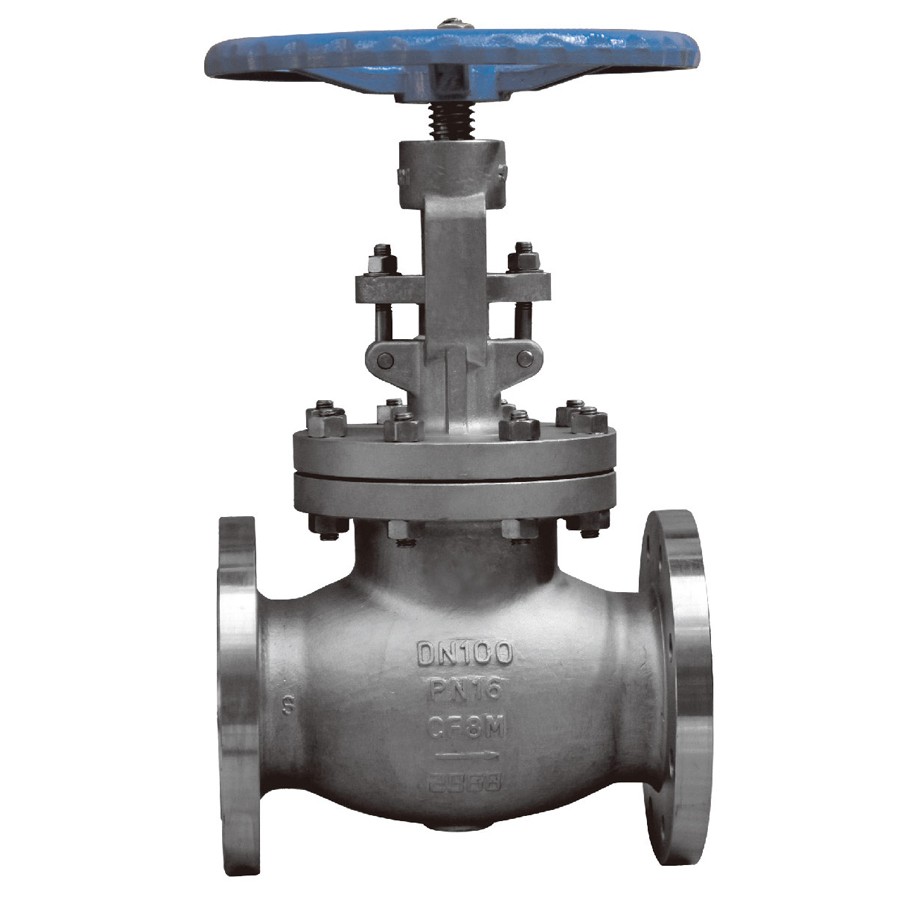

Cast Steel Globe Valve

Cast Steel Globe Valve

EMAIL

Cast Steel Globe Valve Exporter, Tengs Valve Supply Ansi, Din Standards, Bolted Cover, Pressure Sealed Bonnet, Rising Stem industrial Cast Carbon Steel Globe Valve, Stainless Steel Globe Valve, Plug Disc or Parabolic Disc; And Flanged, BW (Butt Weld) Ends Globe Stop Valves For Sizes 2in to 18in, DN50 to DN450; All Manual Globe Valves, Stop Valves, Shut-Off Valves in Handwheel or Worm Gear Opereated


Cast Steel Globe Valve Specifications:

1. Design & Manufacture: ANSI B16.34, BS 1873
2. OS&Y Construction, Bolted Bonnet, Pressure Seal Bonnet
3. Size Range of Globe Valve: 2″ to 18″
4. Pressure Ratings: ANSI 150Lbs, 300Lbs, 600Lbs, 900Lbs, 1500Lbs
5. End Connections: Flanged, Butt weld
6. Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12, Duplex Stainless Steel or Equivalent;
7. Various Trim Materials Are Available to Suit Service Conditions
8. Actuator: Manual, Gearbox, Electric Actuator
9. NACE MR 0175 on Request

Cast Steel Globe Valve Main Parts:

Part Name

Material

A216-WCB

A216-WCB

A216-WCB

A216-WCB

A216-WCB

A351-CF8(M)

A351-CF3(M)

Trim 1#

Trim 8#

Trim 5#

Trim 10#

Trim 12#

Body

A216-WCB

A216-WCB

A216-WCB

A216-WCB

A216-WCB

A351-CF8(M)

A351-CF3(M)

Bonnet

A216-WCB

A216-WCB

A216-WCB

A216-WCB

A216-WCB

A351-CF8(M)

A351-CF3(M)

Disc

WCB +13Cr

WCB +13Cr

WCB +STL

WCB +316

WCB +316

A351-CF8(M)

A351-CF3(M)

Seat

13Cr

Stellite

Stellite

316SS

Stellite

Integral

Integral

Stem

A182-F6a

A182-F6a

A182-F6a

A182-F316

A182-F316

A182-F304 /316

A182-F304L /316L

Bolts/Nuts

B7/2H

B7/2H

B7/2H

B7/2H

B7/2H

B8(M) /8(M)

B8(M) /8(M)
