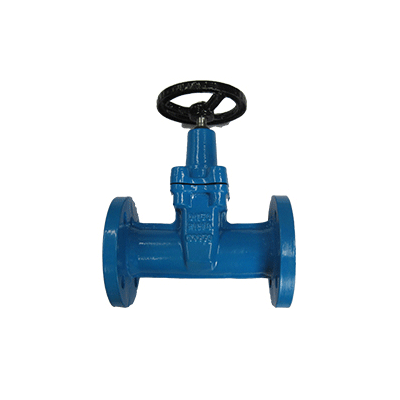

DIN 3202 F4/F5 NRS/OS&Y Resilient Seat Gate Valve
DIN 3202 F4/F5 NRS/OS&Y Resilient Seat Gate Valve
DIN 3202 F4/F5 NRS/OS&Y Resilient Seat Gate Valve
Materials:
Part Name | Material |
Valve Body | Ductile Rion GGG50 |
Bonnet | Ductile Rion GGG50 |
Gland Flange | Ductile Rion GGG50 |
Hand Wheel | Ductile Rion GGG50 |
Resilient Wdege Disc | GGG50+EPDM or GGG50+NBR |
Stem | 2Cr13/ss410 |
Thrust Washer | Brass |
Wedge Nut | Bronze |
| Nominal pressure | PN10 | PN16 | |
| Test pressure | Shell | 1.5 Mpa | 2.4 Mpa |
| Sealing | 1.1 Mpa | 1.76 Mpa | |
Specification Data:
DN | DN50~1000 |
Class | PN10, 16 |
Working Temperature | ‘-40℃~+120℃ |
Flange drilling standard | DIN 2532-2533/BS EN 1092 |
Surface Treatment | Akzo Nobel Fusion Bonded Epoxy |
Application | Portable Water, Water Distribution Service &Feed Lines, Sewage Disposol, Irrigation.etc. |
