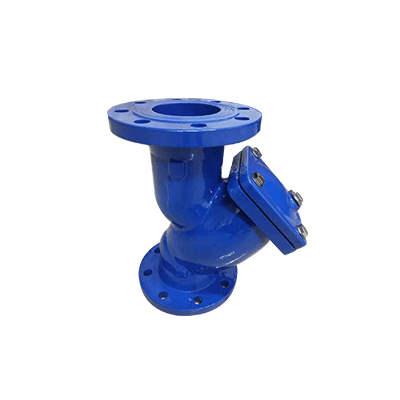

Ductile Iron Y Type Strainer

Y type Strainer

Flanged strainers are main parts of all kinds of pumps, valves in the pipeline. It is suitable for pipeline of norminal pressure<1.6MPa. Mainly used to filter dirt, rust and other debris in media such as steam, air and water etc.

Sizing Your Mesh Filter For A Y Strainer

Of course, the Y strainer wouldn't be able to do its job without the mesh filter that is properly sized. To find the strainer that's perfect for your project or job, it's important to understand the basics of mesh and screen sizing. There are two terms used to describe the size of the openings in the strainer through which debris passes. One is micron and the other is mesh size. Though these are two different measurements, they describe the same thing.

What is a Micron?

Standing for micrometer, a micron is a unit of length that’s used to measure tiny particles. For scale, a micrometer is one thousandth of a millimeter or about one 25-thousandths of an inch.

What is Mesh Size?
A strainer's mesh size indicates how many openings there are in the mesh across one linear inch. Screens are labeled by this size, so a 14-mesh screen means you’ll find 14 openings across one inch. So, a 140-mesh screen means that there are 140 openings per inch. The more openings per inch, the smaller the particles that can pass through. The ratings can range from a size 3 mesh screen with 6,730 microns to a size 400 mesh screen with 37 microns.

<td align="center" style="box-sizing: border-box; outline: 0px; margin: 0px; padding: 0px 15px; border-color: rgb(204, 204, 204); line-height: 1.5; background: rgb(251, 251, 251); font-family: Arial, Helvetica, sans-serif; text-align: center !import

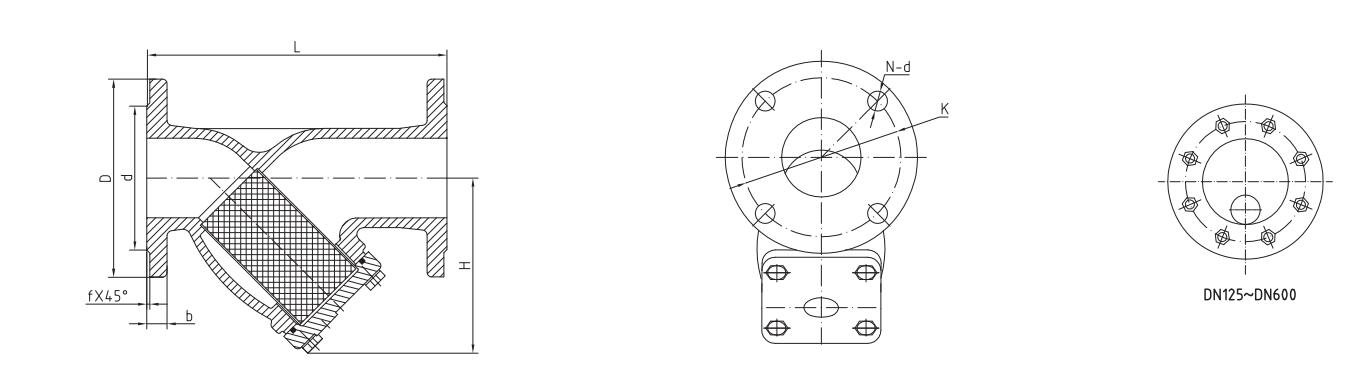

DN	D	d	K	L						W.G（kg)
				F1	GB	b	f	n-d	H	F1	GB
40	150	84	110	200	200	18	3	4-18	125	9.5	9.5
50	165	99	1250	230	230	20	3	4-18	133	12	12
65	185	118	145	290	290	20	3	4-18	154	16	16
80	200	132	160	310	310	22	3	8-18	176	20	20
100	220	156	180	350	350	24	3	8-18	204	28	28
125	250	184	210	400	400	26	3	8-18	267	45	45
150	285	211	240	480	480	26	3	8-22	310	62	62
200	340	266	295	600	600	30	3	12-22	405	112	112
250	405	319	355	730	605	32	3	12-26	455	163	125
300	460	370	410	850	635	32	4	12-26	516	256	145
350	520	430	470	980	696	32	4	16-26	495	368	214
400	580	482	525	1100	790	38	4	16-30	560	440	304
450	640	532	585	1200	850	40	4	20-30	641	—	396
500	715	585	650	1250	978	42	4	20-33	PREVIOUS：DIN Ball Check Valve NEXT：Y Strainer DIN INQUIRY WhatsApp: Email: Content: Verification code: Send  Reset RELATED PRODUCTS T Type Stariner Simplex Basket Strainer Industrial Y Type Strainer PTFE Lined Basket Strainers CATEGORIES Ball Valves - Pinch Valve - Gate Valves - Globe Valves - Check Valves - Goggle Valves - Butterfly Valves - Plug Valves - Penstock Valves - Control Valves - Strainers - Pumps - Ceramic Lined Valves - Safety Relief Valves - Sight Glass Valve - Valve Components - LATEST NEWS What is dome valve? Dome Valve And Ash Handling Sy Pneumatic Double Disc Valve Ex Structural characteristics & a Why are ceramic valves widely CONTACT US Contact: Kyle Yu Phone: 0086-13588930107 E-mail: sales@hrsovalve.com Whatsapp:0086-13588930107 Add: Yang'er Road,Oubei,Wenzhou,Zhejiang,China Link Dory MachineryCaminix CNCValve Test Bench   online service     0086-13588930107    sales@hrsovalve.com     HRSO Valve    We chat
