Floating Ball Valves

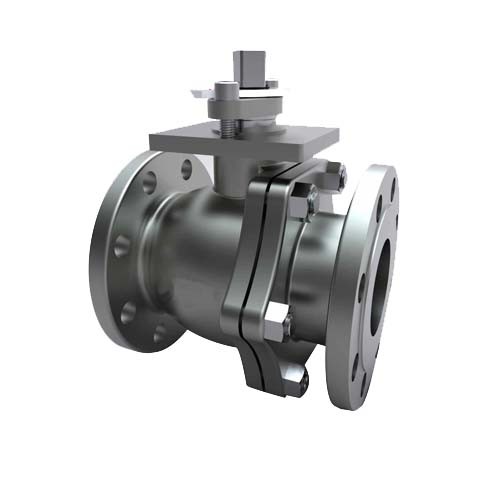

2PCS Flanged Floating Ball Valve

Product features:

• Cast Stainless Steel material

• Solid Stainless Steel Ball

• Blow-out Proof Stainless Steel Stem

• Reinforced PTFE Seats

• Full Opening for Unrestricted Flow

• Lockable in Full Open or Closed Positions

• API 607 Fire Safe Design available

• Mounting Pad for Easy Actuation

• Adjustable Length/Removable Handles to fit into areas of limited space

• Handle with locking device is option

• Certified to meet the requirements of different markets.

Technical Specifications:

Design & Manufacture standard: API 6D, API 608, BS 5351/DIN3357/JIS B2071

Pressure & Temperature standard: ASME B16.34/DIN3230

Face to face dimension standard: ASME B16.10/DIN3202/JIS B2002

Flange standard: ASME B16.5, ASME B16.47/DIN2543-2545-2501/JIS B2220

Test & Inspect standard: API 598, API 6D/DIN2401/JIS B2003.
