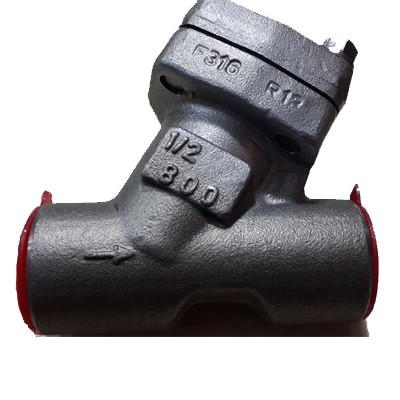

Forged Steel Y Type Strainer
ASTM A105
1/2''-2''
Class 150-Class2500
Forged Y Type Strainer (Forged Y Strainer) is Designed For Bore Sizes 1/2inch to 2inch, Both For Socket Weld Ends and Threaded Ends; The Materials are In Forged Carbon Steel And Stainless Steel; Pressure Rating Range From 150LBS to 2500LBS.
APPLICATION SPECIFICATIONS:
1. Design and Manufacture: BS5352
2. Inspection and Test: API 598
3. Structure Feathers: Bolted Bonnet, Welded Bonnet, Pressure Sealing Bonnet
4. End Connections:
SCREWED | ANSI B1.20.1 (NPT)/BS21 /BSP) |
BUTTWELD | ANSI B16.25 |
SOCKET WELDING | ANSI B16.11 |
FLANGED | ANSI B16.5 |

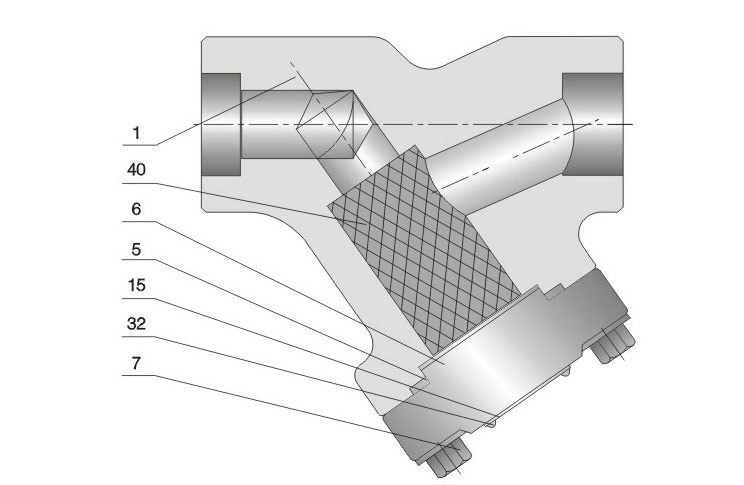

Forged Y Strainer Main Parts Materials List
No. | Part name | Material | |||||
1 | Body | A105(N) | A350-LF2 | A182-F11 | F304(L) | F316(L) | F51 |
5 | Gasket | Graphite+304SS/316SS | |||||
6 | Bonnet | A105(N) | A350-LF2 | A182-F11 | F304(L) | F316(L) | F51 |
7 | Bolt | B7 | L7 | B16 | B8(M) | B8(M) | B8M |
15 | Nameplate | Standards | |||||
32 | Rivet | H62 | |||||
40 | Screen | 304SS/304LSS/316SS/316LSS |
