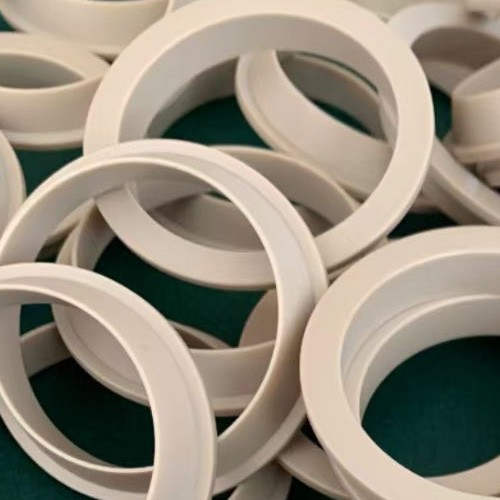

Thermosetting resin PEEK Ball Valve Seat
Used for Floating / Trunnion Mounted Ball Valve Seat, High Quality
PEEK is a thermoplastic resin with the characteristics of a thermosetting resin.
It is a crystalline polymer with a melting point of 334℃.
Corrosion resistance: in addition to concentrated sulfuric acid.
Friction resistance: suitable for a variety of harsh working conditions.
High temperature resistance: UL standard certification for long-term use at 260℃.
Flame retardant: Flammability grade UL 94 V-0.
Hydrolysis resistance: It can withstand 250℃ steam and high pressure water.
Electrical performance: Stable performance over a wide temperature and frequency range.
Irradiation resistance: Resistant to 109Rad doses of β and γ-ray radiation.
Specifications
| Density | Tensile Strength | Elongation | Hardness | |
| Test Method | ASTM D798 | ASTM D638 | ASTM D638 | ASTM D785 |
| Unit | g/cm3 | Mpa | % | Shore D |
| PEEK | 1.32 | 93 | 30 | 85-90 |
Compressive Strength | Saturation Water Absorption Rate | Coefficient of linear expansion | Coefficient of Friction | Deformation Under load 13.8Mpa 23℃24 hours | |
| Test Method | ASTM D695 | ASTM D570 | ASTM D696 | M-200 | ASTM D621 |
| Unit | Mpa | % | 1/K | % | |
| PEEK | 118 | 0.5 | 0.47*10-4 | 0.236 | 0.0 |
Please contact sales@hrsovalve.com for more information.
