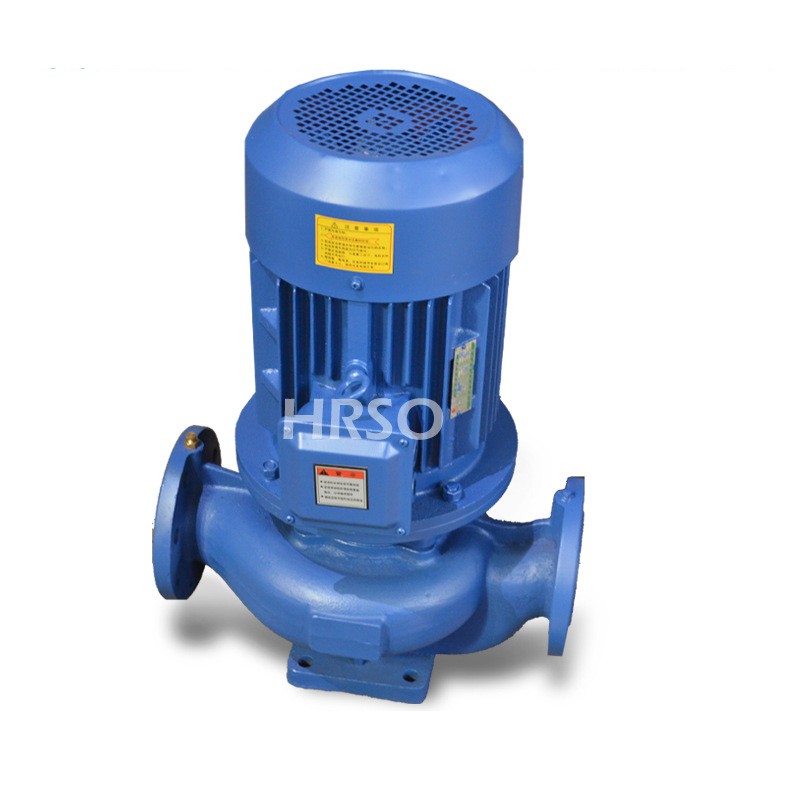

Vertical Centrifugal Pump

1. Summary

HRSO Vertical centrifugal pumps used to transfer clean water and other liquids, the physical properties of which are similar to those of pure-water, in industrial and city water supply and drainage, high buildings booster water supply, garden irrigation, fire-fighting booster, remote water supply, heating systems, circulating booster of cold & hot water in bath rooms. The pumped liquid should be below 80℃ (Contact us for higher temperature)

• Water treatment

• Building water supply

• Chemical industry

• Chemical and petrochemical industries

• Pharmaceutical industry

• Food and drink industries

• Cooling system

2. ADVANTAGE:

Compact structure - in line pump with small volume, pleasing design. The vertical arrangement saves space due to its smaller footprint. Easy to mount - Because of the same size of both inlet and outlet, and being on the same centreline, the pump can be mounted on any part of the pipeline just as a valve. The motor is covered with a rain-proof cap so that operation can be done outdoors. Mounting feet are cast into the pump so that it can be mounted with maximum stability.

Stable running - low noise, high concentricity of components. We are using high quality bearings for the motor. It can be lubricated while running. Impellers are dynamically and static balanced, to ensure vibration free running and long service life.

No leakage- The pump is fitted with a mechanical seal with carbide alloy faces. This feature allows for leak free operation for extended periods guaranteeing a clean and tidy environment.

Easy to maintain – It is not necessary to remove the pipeline for inspection and maintenance, simply undo the bolts on the backplate and remove motor and pump components.

The pump, according to the operating conditions of the worksite, may be mounted vertically or horizontally, mounted in parallel and/or in series to increase the flow and head.

Pump details:
