Wafer Type Worm Gear Butterfly Valve Rubber Seal

Description:

HRSO wafer butterfly valve can be used as a device to cut-off or regulate the flow in various medium pipes. Through selecting different  materials of disc and seal seat, as well as the pinless connection between disc and stem,the valve can be applied to worse conditions, such as desulphurization vacuum, sea water desalinization.

Characteristic:

1. Small in size&light in weight and easy maintenance. It can be mounted wherever needed.

2. Simple, compact structure, quick 90 degree on-off operation
3. Disc has two-way bearing, perfect seal, without leakage under the pressure test.
4. Flow curve tending to straight-line. Excellent regulation performance.
5. Various kinds of materials, applicable to different media.
6. Strong wash and brush resistance, and can fit to bad working condition.
7. Center plate structure, small torque of open and close.
8. Long service life. Standing the test of ten thousands opening and closing opration.
9. Can be used in cutting off and regulating media.

Typical Application:

1.    Water works and water resource project
   2. Enviroment Protection
   3. Public Facilities
   4. Power and Public Utilities
   5. Building industry
   6. Petroleum/ Chemical
   7. Steel. Metallurgy
   8. Paper make industry
   9. Food/Beverage etc

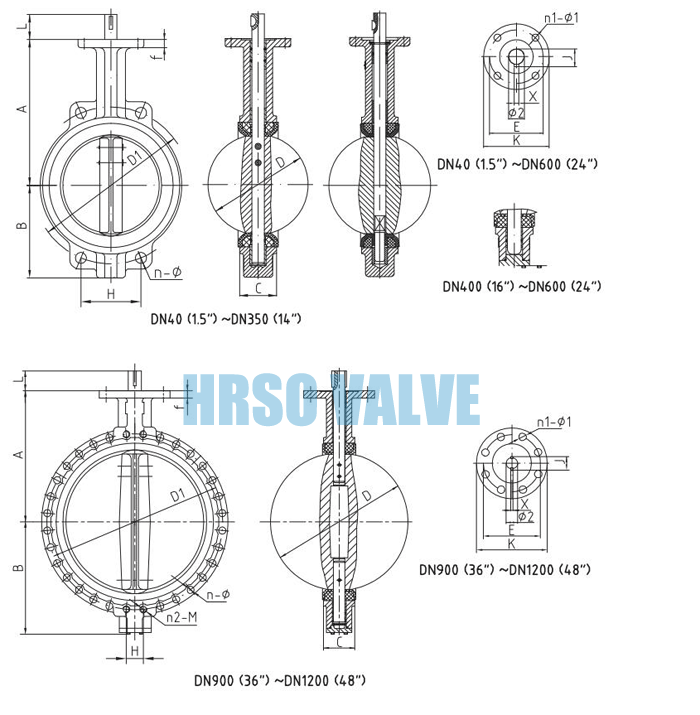

Dimensions:

Size		A	B	C	D	L	H	D1	n-Φ	E	n1-Φ1	Φ2	Weight (kg)
(mm)	(inch)
40	1.5	136	69	33	42.6	28	77.77	110	4-18	50	4-6.7	12.6	2.3
50	2	161	80	43	52.9	28	84.84	120	4-23	57.15	4-6.7	12.6	2.8
65	2.5	175	89	46	64.5	28	96.2	136.2	4-26.5	57.15	4-6.7	12.6	3.5
80	3	181	95	45.21	78.8	28	61.23	160	8-18	57.15	4-6.7	12.6	3.7
100	4	200	114	52.07	104	28	70.8	185	4-24.5	69.85	4-10.3	15.77	5.4
125	5	213	127	55.5	123.3	28	82.28	215	4-23	69.85	4-10.3	18.92	7.7
150	6	226	139	55.75	155.6	28	91.08	238	4-25	69.85	4-10.3	18.92	9.3
200	8	260	175	60.58	202.5	38	112.89/ 76.35	295	4-25/4-23	88.9	4-14.3	22.1	14.5
250	10	292	203	68	250.5	38	92.4	357	4-29/4-29	88.9	4-14.3	28.45	23
300	12	337	242	76.9	301.6	38	105.34	407	4-30	107.95	4-14.3	31.6	36
350	14	368	267	76.5	333.3	45	91.11	467	4-26/4-30	107.95	4-14.3	31.6	45
400	16	400	325	85.7	389.6	51/ 60	100.47/ 102.425	515/ 525	4-26/4-30	158.75	4-20.6	33.15	65
450	18	422	345	104.6	440.51	51/ 60	88.39/ 91.51	565/ 585	4-26/4-33	158.75	4-20.6	37.95	86
500	20	480	378	130.28	491.6	57/ 75	86.99/ 101.68	620/ 650	20-30/20-36	158.75	4-20.6	41.15	113
600	24	562	475	151.36	592.5	70/ 75	113.42/ 120.46	725/ 770	24-30/24-33	215.9	4-22.2	50.65	209
700	28	624	535	163	695	66	109.65	840	24-30	254	8-18	63.35	292
800	32	672	606	188	794.7	66	124	950	24-33	254	8-18	63.35	396
900	36	720	670	203	870	118	117.57	1050	24 PREVIOUS：Flange end Concentric Butterfly Valve NEXT：Wafer Type Butterfly Valve Rubber Seal INQUIRY WhatsApp: Email: Content: Verification code: Send  Reset RELATED PRODUCTS Electric Actuated Lined flanged Butterfl PTFE Lined Butterfly Valve with Pneumati Lined Butterfly Valve U Type Butterfly Valve EPDM CATEGORIES Ball Valves - Pinch Valve - Gate Valves - Globe Valves - Check Valves - Goggle Valves - Butterfly Valves - Plug Valves - Penstock Valves - Control Valves - Strainers - Pumps - Ceramic Lined Valves - Safety Relief Valves - Sight Glass Valve - Valve Components - LATEST NEWS What is dome valve? Dome Valve And Ash Handling Sy Pneumatic Double Disc Valve Ex Structural characteristics & a Why are ceramic valves widely CONTACT US Contact: Kyle Yu Phone: 0086-13588930107 E-mail: sales@hrsovalve.com Whatsapp:0086-13588930107 Add: Yang'er Road,Oubei,Wenzhou,Zhejiang,China Link Dory MachineryCaminix CNCValve Test Bench   online service     0086-13588930107    sales@hrsovalve.com     HRSO Valve    We chat
