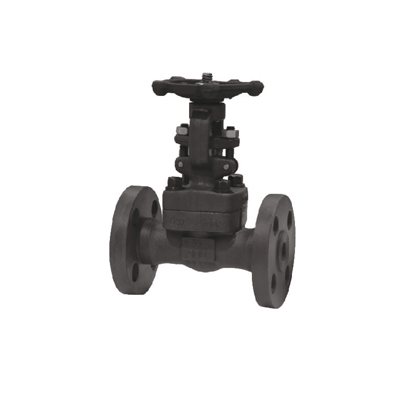

API602 Forged Steel A105 Gate Valve RF

API602 Forged Steel A105 Gate Valve RF

Forged Steel Flanged Gate Valve: Industrial, Solid Gate Or Wedge, Api 602 Forged Carbon Steel Gate Valves, Stainless Steel Gate Valves and Alloy Steel Gate Valves, Trim in 13CR, 8#, 5#, and Stainless Steel; Sizes 1/2″ to 2″, Pressure Rating ANSI Class 150LBS, 300LBS, 600LBS, 900LBS, 1500LBS and 2500LBS; End Flange Types: Integral Flange Gate Valve and Welded Flange Gate Valve, RF and RTJ. Rising Stem, B.B. & W.B Designs, Handwheel Operated or Bare Stem As Per ISO 5211 For Forged Steel Gate Valve

Forged Steel Flanged Gate Valve Specification:
1. Design & Manufacture: API 602
2. Constructions: OS&Y, Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet;
3. Bore Type: Full Port
4. Size Range: 1/2" to 2".
5. Pressure Ratings: ANSI 150, 300, 600, 900, 1500 & 2500LBS
6. End Connections: Flanged (RF, RTJ)
Other Ends Also Available: Threaded (Screwed, NPT), Butt weld (BW), Socket Weld (SW).
7. Materials Available in: A105 (N), LF2, F5, F11, F22, F304, F316, F51, F53 or Equivalent;
8. Various Trim Materials Are Available to Suit Different Service Conditions
9. NACE MR 0175 on Request
10.Test and Inspection: API598
11. Special Requirement, Please Contact us.

Forged Steel Flanged Gate Valve Main Parts:

For More Details, contact sales@hrsovalve.com . Thanks.
