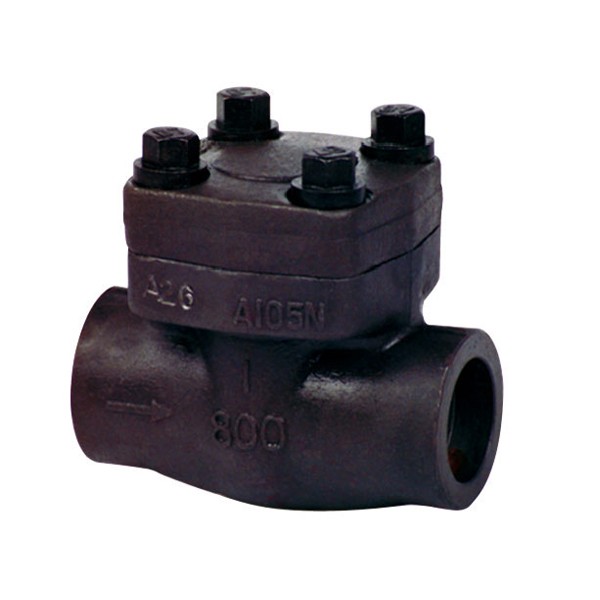

ASTM A105 Swing Check Valve

ASTM A105 Swing Check Valve

EMAIL

Forged Carbon Steel Check Valve Supplier: Offers Swing Type, Vertical (Lifting) Type, Ball Type and Y Pattern Forged Steel Check Valves, Sizes From 1/2in to 2in, Pressure Rating From Ansi 150Lbs to 2500Lbs, The Forged Steel Check Valve Can Be Designed to Following Bonnet Type: Bolted Bonnet (BB), Welded Bonnet (WB) and Pressure Seal Bonnet (PSB).

FORGED CARBON STEEL CHECK VALVE SPECIFICATIONS:

1. Design & Manufacture: BS5352
2. Constructions: Bolted Bonnet, Welded Bonnet & Pressure Sealed Bonnet (PSB)
3. Port Type: Full Port / Reduced Port
4. Size Range: 1/2" to 2"
5. Pressure Ratings: ANSI 150LB, 300LB, 600LB, 800LB, 900LB, 1500LB & 2500LB
6. End Connections: Threaded (Screwed), Flanged, Butt weld, Socket Weld (SW).
7. Materials Available in: A105, LF2, F5, F11, F22 or Equivalent
8. Various Trim Materials are Available to Suit Different Service Conditions
9. NACE MR 0175
10.Test and Inspection: API598

FORGED CARBON STEEL CHECK VALVE MATERIAL LIST:


Part Name

Material

A105

A105

A105

LF2

F11

F22

Trim 1#

Trim 8#

Trim 5#

Trim 13Cr

Trim 13Cr

Trim 13Cr

Body

A105

A105

A105

LF2

F11

F22

Bonnet

A105

A105

A105

LF2

F11

F22

Disc

13Cr

13Cr

STL

13Cr

13Cr

13Cr

Seat

13Cr

STL

STL

13Cr

13Cr

13Cr

Hinge Pin

F6a

F6a

F6a

F6a

F6a

F6a

Bolts

B7

B7

B7

L7

B16

B16
