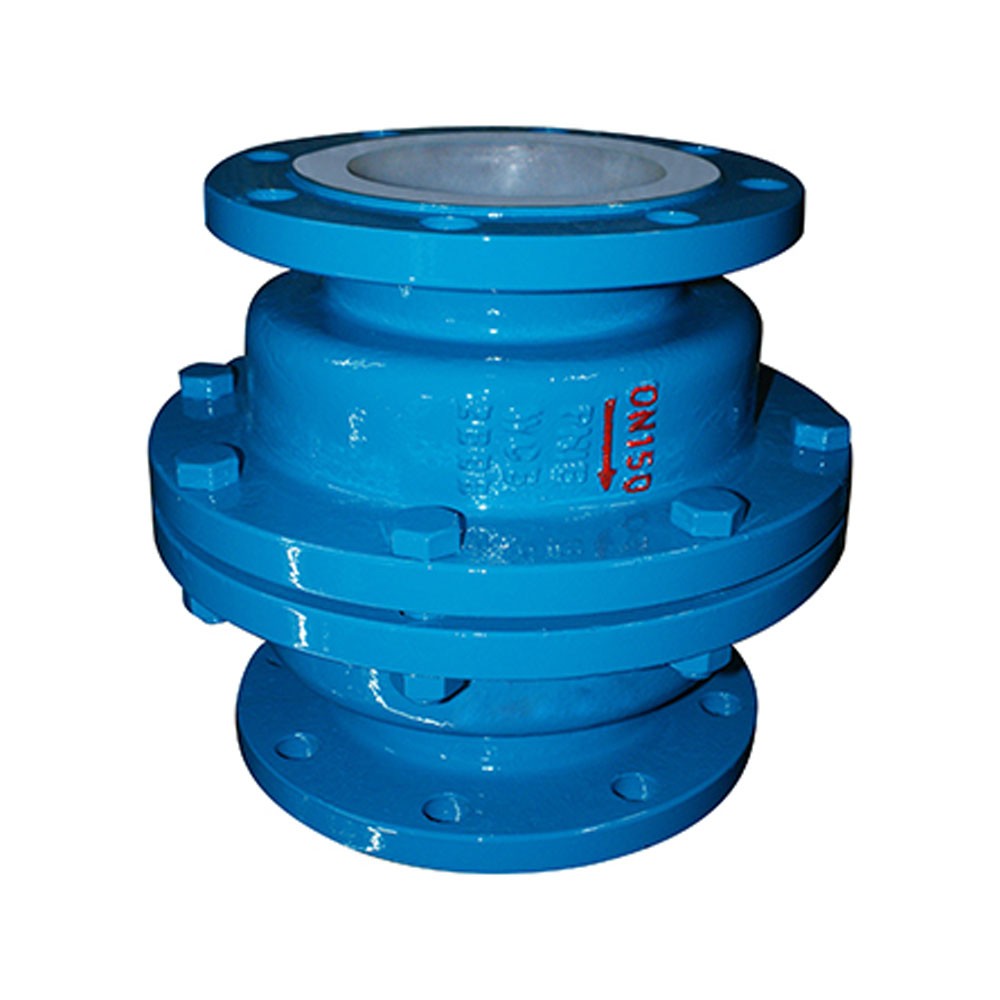

Lined Vertical Check Valve

Lined Vertical Check Valve
DN50-DN400

Lined Vertical Check Valve

The function of this type of valve is to only allow the medium to flow in one direction, and to prevent the flow in one direction. Usually this kind of valve works automatically. Under the action of fluid pressure flowing in one direction, the valve flap opens; when the fluid flows in the opposite direction, the fluid pressure and the self-coincident valve flap of the valve flap act on the valve seat, thereby cutting off the flow.

Technical Standard
Design and Manufacture	GB/T12235 GB/T12236

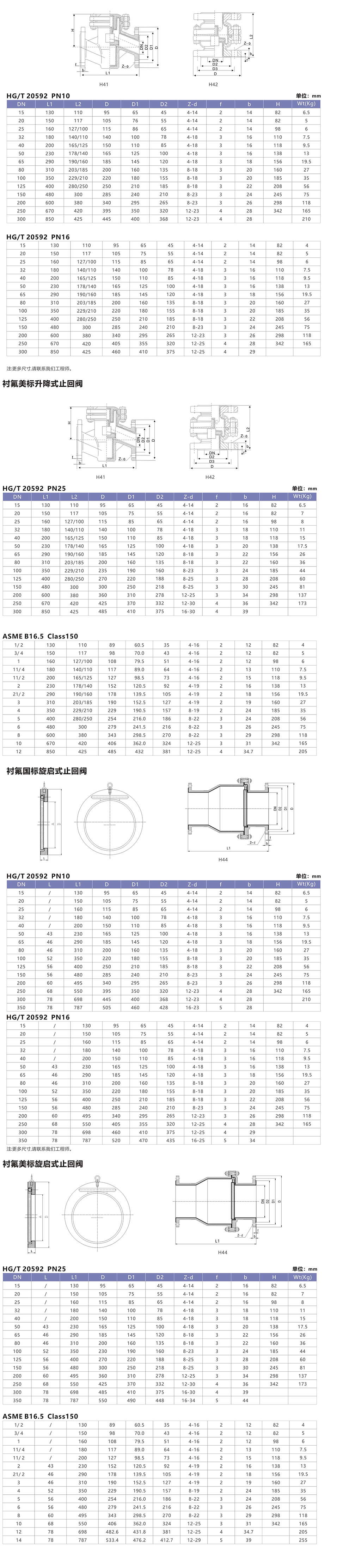

Face to Face dimension	HG/T3704-2003 GB12221 ASME B16.10
Flange Dimension	GB/T9113.1、 ANSI B16.5a
Structure Type	Vertical Type, Swing Type, Lift Type
Nominal Pressure	0.6、1.0、1.6、2.5Mpa Class150 JIS 10K
Test and Inspection	GB/T13927-92 API598
