DN300-DN2000 Pneumatic Drive Goggel Valves

Nominal Diameter: DN300~DN2000
Nominal Pressure: 0.05~0.25MPa
Applicable Temperature: 120℃, 200℃, 300℃
Drive Mode: manual, electric, pneumatic, electric push rod, electro-hydraulic push rod
Applicable Media: gas and toxic, harmful, and flammable gases

EMAIL

Pneumatic Drive Goggel Valves


Nominal Diameter: DN300~DN2000

Nominal Pressure: 0.05~0.25MPa

Applicable Temperature: 120℃, 200℃, 300℃

Drive Mode: manual, electric, pneumatic, electric push rod, electro-hydraulic push rod

Applicable Medium: gas and toxic, harmful, and flammable gases


Brief Introduction

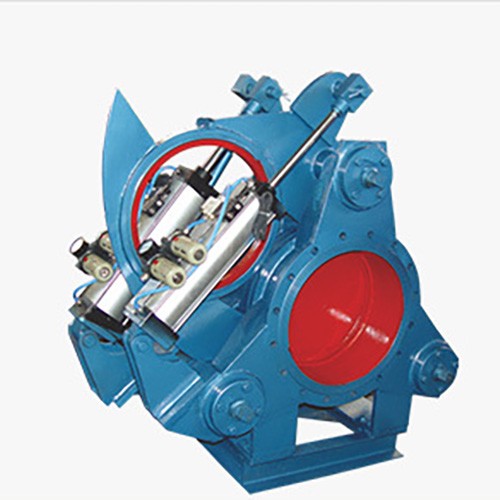

The pneumatic fan-shaped Goggle valves/ blind plate valve is mainly composed of the left valve body, the right valve body, the screw pair, the flap, the sealing ring, the lever, the hydraulic cylinder and other parts, and the base and support column form a rigid structure.There is no clamping cylinder and flap cylinder in the valve. The clamping cylinder drives the left and right valve bodies through the lever pair and the screw screw pair to complete the loosening and clamping action, and the flap cylinder drives the flap to complete the switching action.The rubber sealing ring is inlaid on the flap, which has the characteristics of high temperature resistance, good sealing performance, easy replacement, and long service life.


This goggle valve can be controlled remotely by a single unit, or remotely by multiple units connected to the Internet. Under abnormal circumstances, it can also be operated manually by the valve itself.

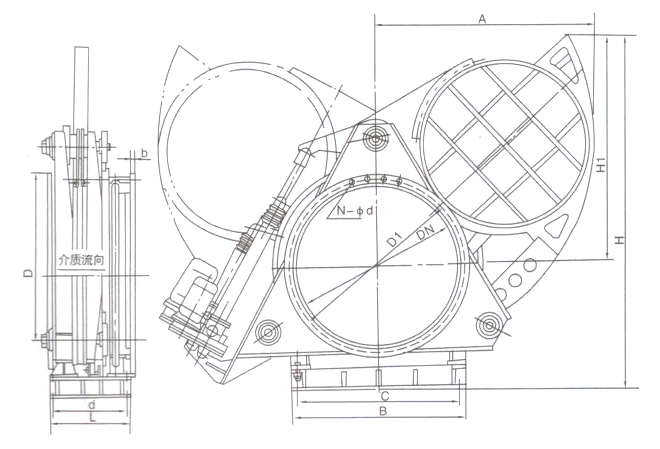

Valves Dimension & Drawing


DNLDD1HH1ABCbN-d Weight kg
PNO.05PNO.15PNO.25
300500440395720360480

1812-22205225250
350600490445810380520

1812-22235255280
400600540495850405600

2416-22286305335
450600595550950430658

2416-22340370400
5006006456001080750712

2620-22420460500
6006007557051590830874

2624-26530580630
7006008608101680880970

2624-26605665730
80080097592018601125110011305253524-30150016501750
9008001075102020551270120012205703524-30180019502100
10008001175112022401400132013206203528-30210023002500
11008001275122024251535151014206703528-30230025002700
12008001375132026201680162514907003532-30260028003050
13008001475142027601770174914907003532-30300033003600
14008501575152029601925185614907003536-30417045504950
15008501690163031052050197615907503536-30490053005800
16008501790173033002160209316908003540-30535058506350
180011001990193036102370233518909003544-30695076008300
2000110021902130396026202570207010003546-308750950010500



Valves Application


If you need any more information, please contact HRSO freely.
