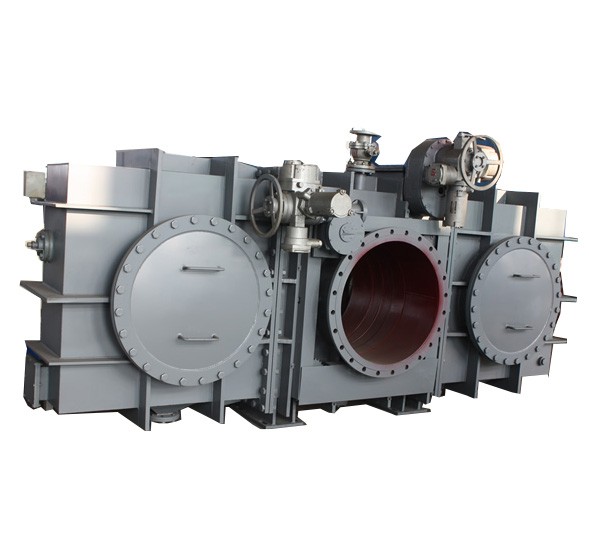

Electric closed type Penstock valve

Electric closed type Penstock valve

Nominal diameter: DN400~3800

Nominal pressure: 0.05~0.25MPa

Applicable temperature: 120℃, 200℃, 300℃

Drive mode: manual, electric, pneumatic, electric push rod, electro-hydraulic push rod

Applicable media: gas and toxic, harmful, and flammable gases

 Electric penstock valve is a kind of valve whose gate and valve seat are always in close contact and sealed.The opening and closing part of the electric flapper valve is a gate. The direction of movement of the gate is perpendicular to the direction of the fluid. The electric flapper valve can only be fully opened and fully closed, not adjusted and throttled.The gate has two sealing surfaces. The two sealing surfaces of the commonly used mode gate valve form a wedge shape, and the angle of the wedge shape varies with the valve parameters.

Principle: There is a round mouth of the same diameter on the gate. Through the opening and closing of the gate, the round mouth on the gate is detached from and coincides with the diameter.

Nominal diameter range: DN50-DN500

Nominal pressure range: 1.0MPa-1.6MPa

Material: cast steel, stainless steel

Gate material: 2Cr13, 201, 304, 316, 316L

Connection form: clip-on type

Valve seat sealing ring: nitrile rubber, EPDM rubber, fluorine rubber surfacing 2Cr13, cemented carbide

Packing seal: graphite packing, ptfe packing

 Valve performance parameters：

DN	D	D1	b	n-φd	L
100	210	170	12	4-φ18	210
150	265	225	14	8-φ18	210
200	320	280	14	8-φ18	230
250	375	335	14	12-φ18	250
300	440	395	16	12-φ22	270
350	490	445	16	12-φ22	290
400	540	495	16	16-φ22	310
450	595	550	20	16-φ22	330
500	645	600	20	20-φ22	350
600	755	705	20	20-φ26	370
700	860	810	20	24-φ26	390
800	975	920	22	24-φ30	410
900	1075	1020	22	24-φ30	430
1000	1175	1120	22	28-φ30	450
1200	1375	1320	22	32-φ30	470
1400	1575	1520	26	36-φ30	490
1500	1675	1620	26	36-φ30	510
1600	1790	1730	26	40-φ30	530
1800	1990	1930	No previous NEXT：DN300-DN2000 Pneumatic Drive Goggel Valves INQUIRY WhatsApp: Email: Content: Verification code: Send  Reset RELATED PRODUCTS CATEGORIES Ball Valves - Pinch Valve - Gate Valves - Globe Valves - Check Valves - Goggle Valves - Butterfly Valves - Plug Valves - Penstock Valves - Control Valves - Strainers - Pumps - Ceramic Lined Valves - Safety Relief Valves - Sight Glass Valve - Valve Components - LATEST NEWS What is dome valve? Dome Valve And Ash Handling Sy Pneumatic Double Disc Valve Ex Structural characteristics & a Why are ceramic valves widely CONTACT US Contact: Kyle Yu Phone: 0086-13588930107 E-mail: sales@hrsovalve.com Whatsapp:0086-13588930107 Add: Yang'er Road,Oubei,Wenzhou,Zhejiang,China Link Dory MachineryCaminix CNCValve Test Bench   online service     0086-13588930107    sales@hrsovalve.com     HRSO Valve    We chat
