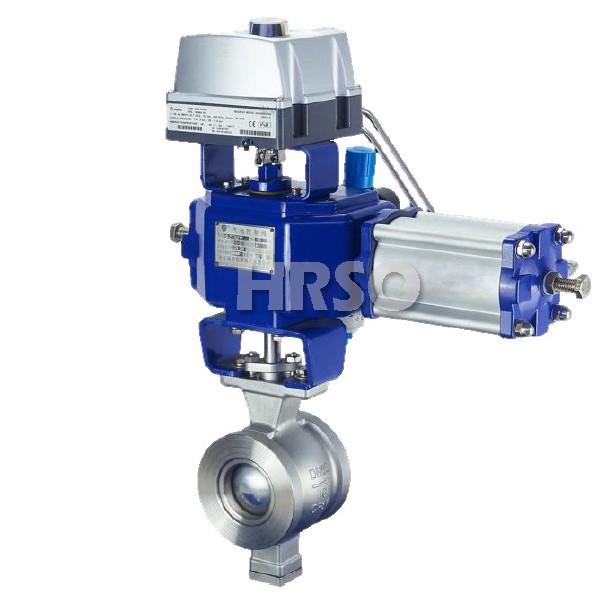

Segment Ball Valve

Product Description

V Port ball valve is also called Segmented ball valve which has the ball V notch type designed and realizes body sealing in V type,very precise and sharp in flow control and shut off medium. It is very good choice for medium like fiber slurry or solid particles.

Soft Seat: RPTFE,PEEK, PPL,Nylon,Molon,Devlon,PCTFE,etc

Metal Seat: Hard Metal like STL6 or TC, etc

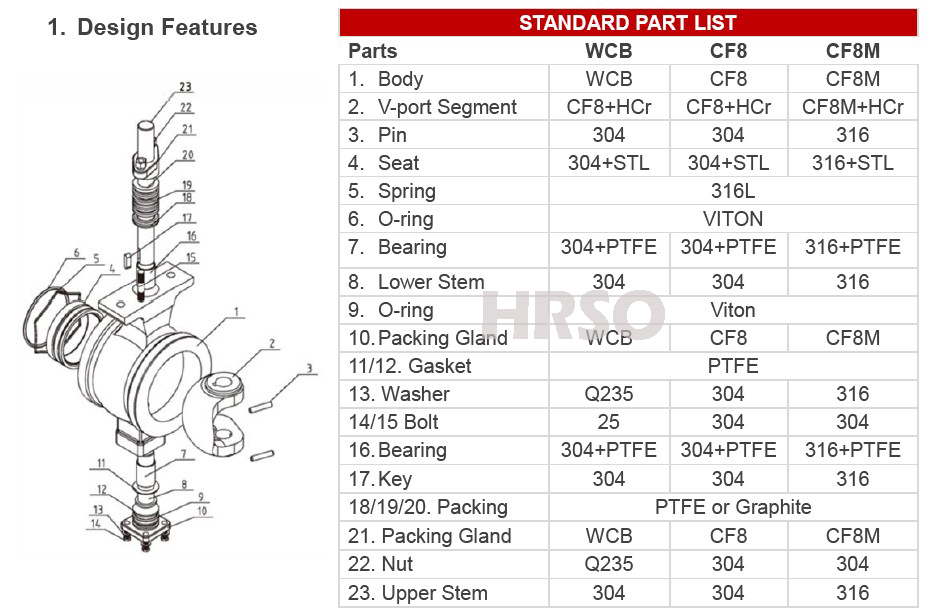

Features: quite often design is wafer or flange ends, V port sealing for flow control, sharp V ball structure is precise in flow cut off, sealing could be metal or soft, the valve is in compact design saves cost.

HRSO ball valves:

Materials: carbon steel, alloy steel, stainless steel, duplex steel,bronze, Inconel,Hastelloy,Monel, Incoloy etc.

Carbon Steel A105N,F11,F22,F5,F9 or WCB,WCC, WC6,WC9,C5, C12 etc.

Low Carbon Steel LF2 or LCB,LCC etc.

Stainless Steel F304,F316, F316L,F347 or CF8, CF8M, CF3M,CF8C etc.

Duplex Steel such as F51,F53, F55 or 4A,5A,6A, CD3MN, CD2MWCuN, CN7M (Alloy 20) etc.

Bronze C95800, RG5 etc.

Other special materials like Inconel 625 could be supplied by request.

Application Standard:

Design: API6D ,ASME B16.34 ,BS5351,ISO14313

Fire safe:API607,API 6FA,

Face-to-face: API 6D/ ASME B16.10

Flanged Ends:ASME B16.5/B16.47 /MSS SP-44/DIN/EN1092-1/GOST33259/JIS

BW Ends:ASME B16.25

Inspection Test :API 598,API6D,ISO5208,EN12266-1

Temperature Ratings :ASME B16.34

Certificate:EN 10204 type 3.1

Markings: MSS SP25

Tags: V port ball valve, V port control valve, Segment ball valve, Jacket Segment ball valve, V port control ball valve.
