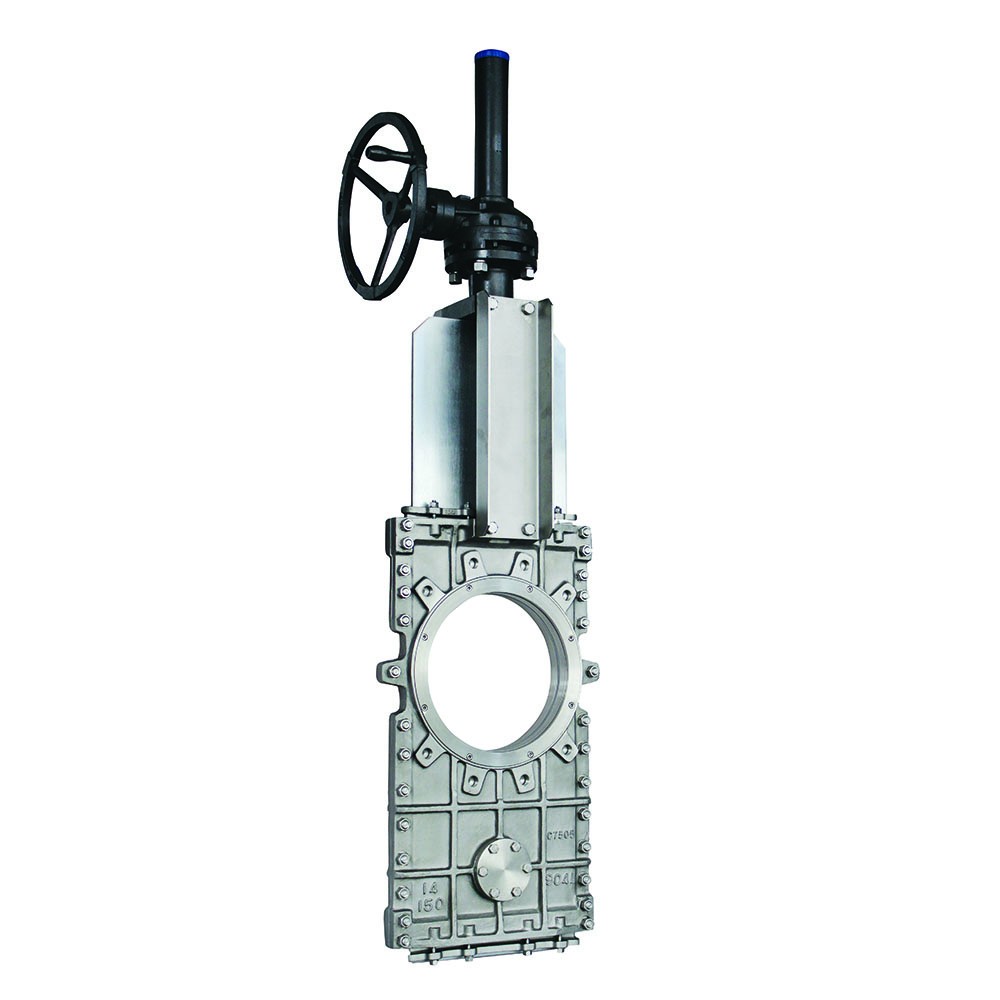

Through conduit knife gate valves

Through conduit knife gate valves
Bidirectional design,
Drive type: Manual , Handwheel, Bevel Gear
Bare Shaft ,Electrical actuated, Pneumatic actuated, Hydraulic actuated

Through conduit knife gate valves

HRSO Through conduit type knife gate valves, Bidirectional design which is ideal for installation handling large solids, very viscous fluids, sludge and highly concentrated slurry(mining, paper industry,cement industry etc).

The main characteristic of the blade is that it passes through the entire length of the body,A round outlet is machined in the middle of the each blade, this outlet, while falling with idtentical outlet on the valve body, allows for maximum direct flow of the mediym. Thus, while being in open position, the valve essentially becomes part of the piping ( leading to dead zones elimination)

Characterisitic of through conduit knife gate valve

Bidirectional wafer type valve

Knife goes through the seals area

Two-piece design body

Circular, total passage, enables a high flow capacity with low load loss

Sided seal- seal and support ring on both sides

Body Materials	Stainless Steel, Duplex Stainless Steel, 904L,HC276 etc
Flange Ends Standard	EN PN10 and ANSI B16.5 Class 150
Testing Standard	EN12666-1 Leakage class A for soft seat Metal seat without leakage control
Drive type	Manual , Handwheel, Bevel Gear,Bare Shaft Electrical actuated, Pneumatic actuated, Hydraulic actuated
Pneumatic cylinder double acting pneumatic	Limit switches, solenoid, filter and regulators SS304 tubes and fittings
Knife Materials	SS304 SS316 SS2205
Seat Materials	NBR, FKM,metal to metal
