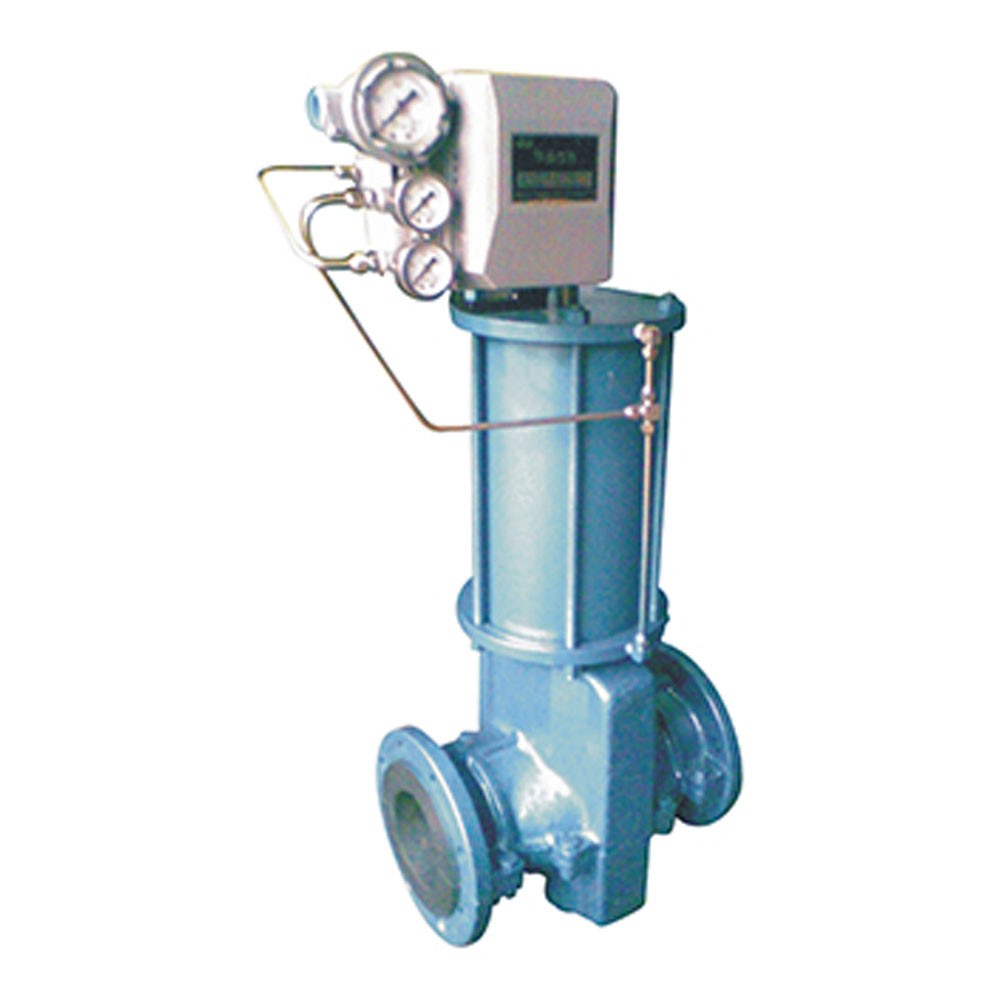

Pneumatic pinch valve

Pneumatic pinch valve
DN25-DN300
Pneumatic Type
PN6 PN10

Aluminum alloy pinch valve, also known as aluminum alloy pinch valve, aluminum alloy hose valve, consists of left and right aluminum alloy valve bodies, rubber tube sleeves, large and small valve stems, upper and lower gates, guide posts and other parts. Wear-resistant, anti-corrosion, anti-freezing, good sealing performance, just need to replace the rubber sleeve, it is as good as new, the valve body can be used permanently, and the service life is 4-6 times that of ordinary valves. The driving methods include manual, pneumatic, electric and other methods, and non-standard products can also be customized according to customer needs.

Product introduction: It is composed of upper and lower cast iron, cast steel valve body, rubber sleeve, large and small valve stem, gate, upper and lower guide column, pneumatic device and other parts, and the driving device can also be selected according to needs. Pneumatic pinch valves are widely used in chemical industry, petroleum industry, electric power sector, metallurgical industry, sewage treatment and so on.

Product features: wear-resistant, anti-corrosion, anti-freeze, good sealing performance, just need to replace the rubber sleeve, it is as good as new, the valve body can be used permanently, and the life is 4-6 times that of ordinary valves.

Main technical parameters of aluminum alloy pinch valve

1. Scope of application: chemical industry, petroleum, power generation, alkali plant, mineral processing, cement, coal preparation, non-metallic and other industries, can quickly control the pipeline concentration sand flow and cut-off.

2. Use medium: pulp, sewage, slag, cinder, sediment, etc.

3. Applicable temperature: -30-85, higher temperature can be customized separately.

4. Nominal pressure: -0.3-2.5Mpa (ordering instructions).

5. Flange implementation standard: (JB/80-91). or as per your standard, please specify .

Main outline and connection dimensions of aluminum alloy pinch valve
